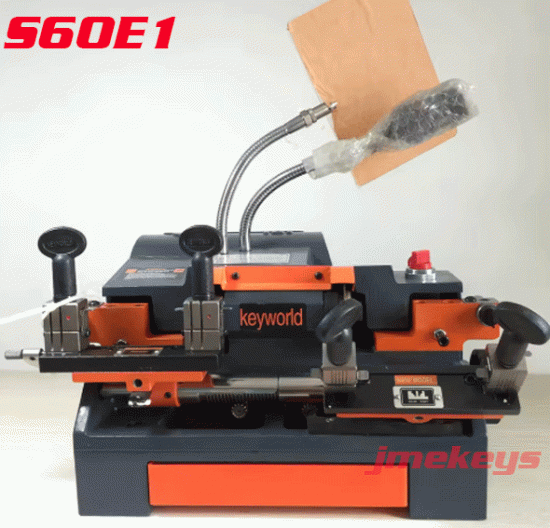

S60E1 Multifunctional Double-Headed Flat Key Cutting Machine

1.Summary:

Two blocks working separately, four-sided revolving clamp for flat keys ,available for flat keys,square keys, semi-circle keys and other special keys , micro metric tracer adjustment,wide space between jaws.

2.Technology Data

Voltage Supply:AC 220V-240V

Weight: 24kg

Size: 450mm*310mm*230mm                    C

utter Speed: 1400rpm

Power: 180W

3. Features:

1. Alloyed Made for both Jaws

2. Wide Jaw space of 104mm to cut large head and long blade keys incuding flip style automotive keys

3. Four Methods of Positioning Keys for Left and Right Jaws

4. Left Jaw with a Four-sided Rotating Mechanism for different Keys

5. The Right Jaw is a Multi-functional Design with Two layers to Clip keys and with special Auxiliary Jaw for copying shorter square and semi-circular keys

6. Micrometric tracer adjustment mechanism for precise calibration and cuttting with the cutter

7. Economical and accuracy combined cutting machine made up with two blocks,with each block working seperately for different keys

8.Multi-functional operation features make it a best choice for store or shop
